GIS Import (Shapefile / GeoJSON / KML)

GIS files in and out without a GIS seat: import a Shapefile, GeoJSON or KML through a layer-rule grid in the drawing's coordinate system, and write the GIS as-built deliverable from an editable jurisdiction profile as Shapefile or GeoJSON. Own readers and writers; plain AutoCAD.

Command VDCSHPIMPORT VDCGISEXPORT VDCGISINFO · VDC Survey tab › Adjoiners + GIS panel
GIS files in and out without a GIS seat: import a Shapefile, GeoJSON or KML through a layer-rule grid in the drawing's coordinate system, and write the GIS as-built deliverable from an editable jurisdiction profile as Shapefile or GeoJSON. Own readers and writers; plain AutoCAD.
.shp / .geojson / .kml → file facts + coordinate system → layer-rule grid → drawing  |  drawing → profile schema → .shp / .geojson + manifest parcels.shp .dbf .prj .cpg EPSG 2273 / WGS84 TYPE → layer ACI label Residential C-PROP-RES 5 PIN Commercial C-PROP-COM 1 PIN (blank) GIS-parcels 0 - PIN 123-45 XData: FIELD=VALUE VDCSHPIMPORT pipes, structures, parcels, layers profile: horry-county-asbuilt.json StormPipes civil-pipes line PIPE_ID ← Name DIA_IN ← DiameterIn INV_UP ← StartInvert SLOPE_PCT ← Slope StormStructs civil-structures point ... VERIFY against the jurisdiction schema StormPipes.shp .shx .dbf .prj .cpg + manifest.csv VDCGISEXPORT State Plane grid or WGS84 lon/lat
GIS files   Drawing / transform   Civil objects   Verify

VDCSHPIMPORT

  • Readers: Shapefile (.shp geometry incl. Z / M variants, .dbf C / N / D / L fields, .cpg encoding, .prj), GeoJSON (all geometry types, legacy crs), KML / KMZ (the suite's reader).
  • Coordinates: lon/lat or the other State Plane zone → the drawing's system (VDCGEOREF assignment first); unrecognised = unchanged with a ⚠ note.
  • Layer-rule grid: one row per file / KML folder / attribute value: import, target layer, ACI color, label field; remembered per file + grouping.
  • Polylines / 3D polylines / closed rings / points or a block; every field of every feature on its entity (VDC record + a Civil 3D property set in the Properties palette; Object Data opt-in); re-import replaces, Clear removes.
  • VDCGISINFO: pick an object → its attribute tables in a FIELD / VALUE grid (the VDC record; Map Object Data too when opted in), Copy to clipboard. Every GIS tool writes them now: Site Data, KML Import, Soils, Wetlands, Adjoiner Parcels, Flood QC.

VDCGISEXPORT

  • Profile JSON per jurisdiction: layers → source (civil-pipes / -structures / -pressure-pipes / -pressure-parts / -parcels / layer:<name>) + fields (name, source property, C / N / D / L, width). Generic sample shipped, VERIFY.
  • Writers: Shapefile sets (.shp / .shx / .dbf / .prj / .cpg; outer rings clockwise) or GeoJSON; drawing system or WGS84; manifest CSV.
  • Pipe inverts = centerline − inner height / 2 (draft); curved pipes and bulged polylines sampled; blocks carry ATTR:<tag>, imports carry GIS:<field>.
  • Plain AutoCAD exports layer sources; civil-* need Civil 3D. Settings %APPDATA%\VDC\GisFiles\.

Dialog

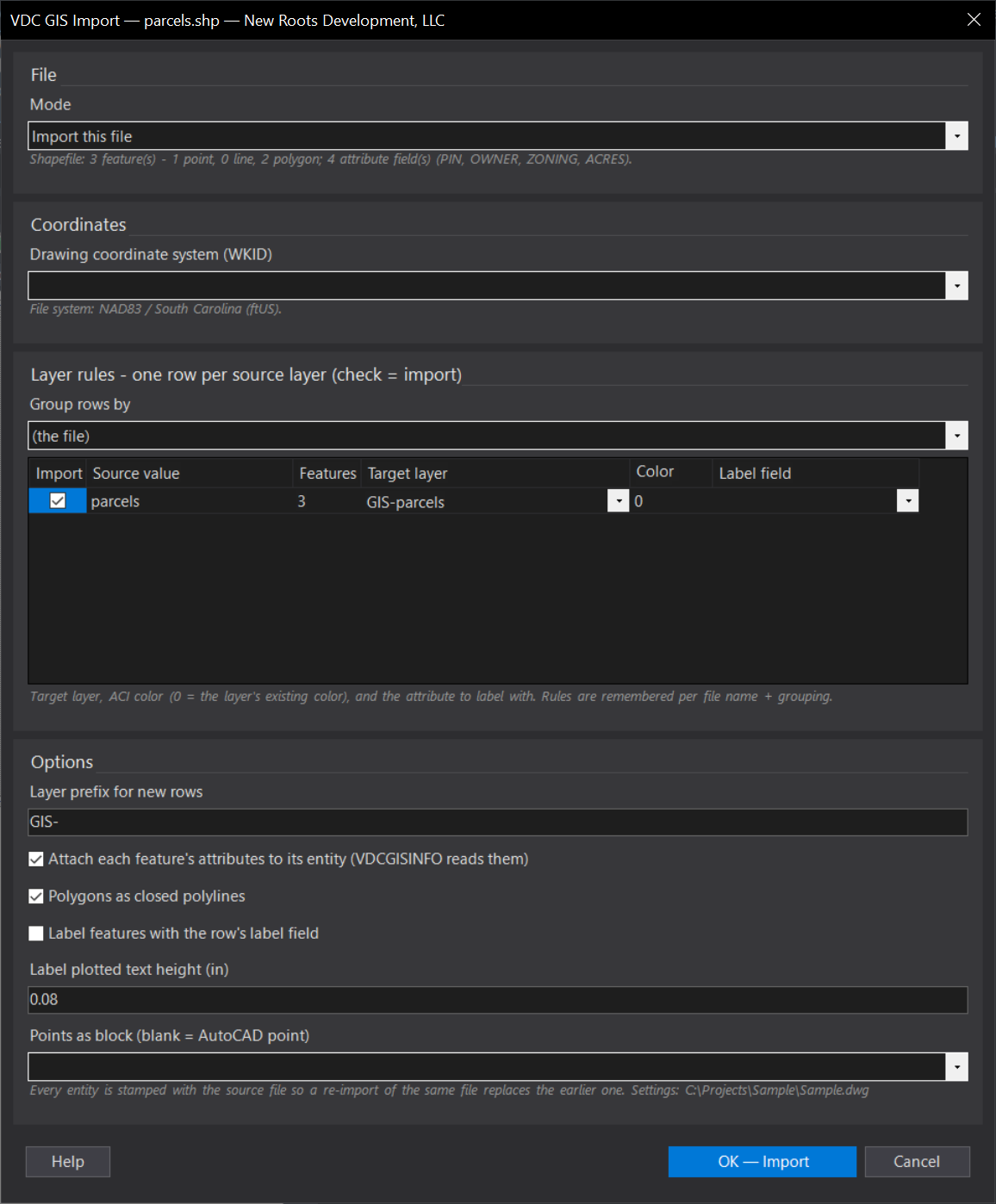

GIS Import (Shapefile / GeoJSON / KML) dialog
GIS Import (Shapefile / GeoJSON / KML), VDCSHPIMPORT

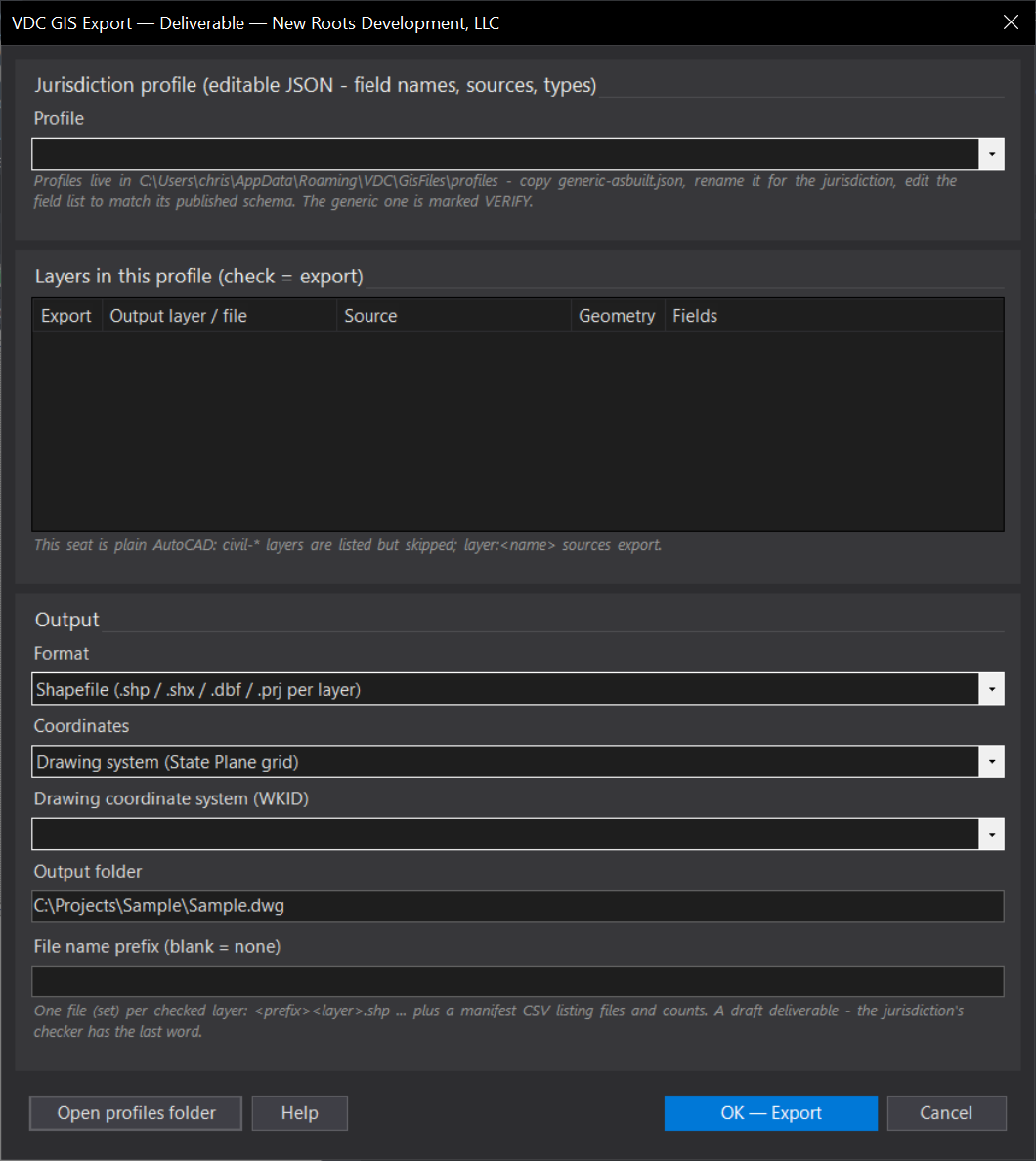

GIS Export (as-built deliverable) dialog
GIS Export (as-built deliverable), VDCGISEXPORT

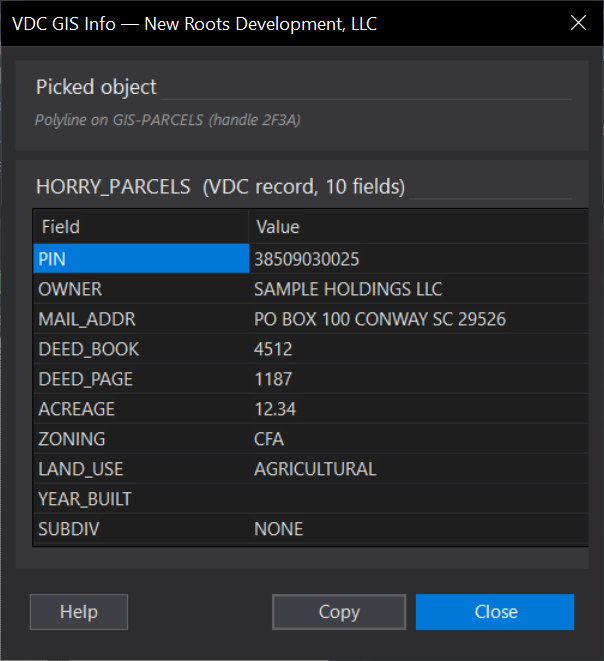

GIS Info (attributes on a picked object) dialog
GIS Info (attributes on a picked object), VDCGISINFO

When to use it

  • County GIS downloads (parcels, zoning, wetlands, utilities) that arrive as shapefiles.
  • A consultant's GeoJSON or a client's Google Earth markup that needs to land on real layers with its attributes.

How to run it

  1. Run VDCSHPIMPORT and pick the file in the file dialog.
  2. Read the file line (features, fields, coordinate system) and the transform note; choose Group rows by (the file, or an attribute).
  3. In the grid check the rows to import and set target layer / color / label field; set the options; OK.

Options

  • Group rows by: the whole file as one row, or one row per distinct value of an attribute (e.g. TYPE) - each value gets its own layer.
  • Rules memory: layer / color / label per source value are remembered by file name + grouping for the next import.
  • Attributes: every entity carries FIELD=VALUE XData (VDC_GISATTR) - the GIS Export tool reads it back.
  • Points: AutoCAD points, or a block from the drawing; Z from the file when it carries it (3D polylines for Z lines).

Watch out for

  • Every NAD83 State Plane zone (EPSG or ESRI code, or Esri's zone name in the .prj) and lon/lat are transformed; a projected file in some other system imports unchanged.
  • A .shp without its .dbf imports geometry only; without its .prj the system is a guess (the summary says so).
  • Multipatch shapes and nested KML network links are skipped and counted.

Related: KML Import · GIS Export (Deliverable) · Site Data
